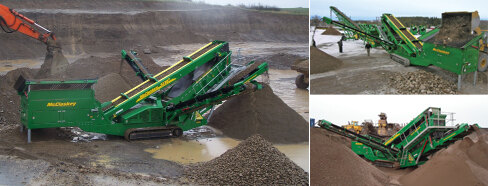

The McCloskey S130 represents the most advanced 14' x 5' portable vibratory screening plant in production today, bringing McCloskey International to the forefront of dry screening equipment.

The McCloskey S130 is designed to meet the demands of operators who require significantly more screening capacity than a 10' or 11' screenbox can offer, but not the massive throughput of a 20' plant. Operations served by the S130 include quarrying, crusher circuits, sand & gravel and coal screening.

The McCloskey S130 flatdeck screener comes equipped with 130 square feet of screening area, across a 14'' x 5' top deck and a 12' x 5' bottom deck.

Combining this class leading screening area with the new McCloskey High Energy Screen technology ensures that no other 14' x 5' screening plant is in the same league.

With this aggregate processing power, comes flexibility. The McCloskey S130screen box can be hydraulically angled between 25 and 38 degrees, allowing for adaptability to a wide range of materials, while the higher angle settings permit high production levels in sand screening that only McCloskey can offer.

Optional Configurations

 Features, Benefits and Further Options

• 130 square feet of screening area
• 100HP Caterpillar diesel engine
• True 10 minute setup time
• Remote control tracks
• Adjustable screen box stroke and shaft speed
• Remote or timer controlled hydraulic tipping grizzly
• 12' long hopper with 10.5 cu. yard capacity
• Optional 15' long hopper with 13.2 cu. yard capacity
• McCloskey 'Travel-Out' galvanized walkways, requiring no set-up
• Optional detachable tandem axle transport bogie

Specifications (Track Mounted, Long Hopper with Livehead)
